Configure Your Agent Runtime

An agent runtime is the execution backend Rudder calls when an agent wakes up. Rudder owns the organization, issue, heartbeat, transcript, and close-out evidence. The runtime owns the actual work: running a local CLI, launching a custom process, calling an HTTP endpoint, or forwarding the run to a gateway. Use this guide when you are hiring a new agent, switching an existing agent to a different backend, or wiring Rudder to your own runtime wrapper.

Before you start

Make sure you have:

a running Rudder instance
an organization where you can create or edit agents
the local CLI, script, gateway, or webhook you want Rudder to invoke
credentials already installed on the same host that runs Rudder

For local development, start Rudder with:

npx @rudderhq/cli@latest start

Then open the organization, create or edit an agent, and use the Runtime section of the agent form.

What runtime configuration controls

There are three related pieces of configuration:

Field	What it controls	Example
`agentRuntimeType`	Which backend Rudder invokes for heartbeats	`codex_local`, `claude_local`, `process`, `http`
`agentRuntimeConfig`	Backend-specific settings	model, instructions file, command, URL, headers
`runtimeConfig`	Rudder scheduling and workspace behavior	heartbeat cadence, budgets, workspace settings

Most runtime setup lives in agentRuntimeConfig. Change runtimeConfig only when you are configuring how Rudder schedules or hosts the agent, not which executable or endpoint runs the work.

Choose a runtime

Runtime	Use it when	Required setup
Codex (local)	The agent should work in local repositories through Codex	Codex installed and authenticated on the Rudder host
Claude Code (local)	The agent should use Claude Code for local operator or repo work	Claude Code installed and authenticated on the Rudder host
Gemini, OpenCode, Pi, or Cursor local	You want one of those local CLI-backed agents	The matching CLI installed and authenticated
Shell Process	You have a custom script, wrapper, or internal runner	An executable command and optional arguments
HTTP Webhook	Your runtime is an external service	A reachable `http://` or `https://` endpoint
OpenClaw Gateway	You run agents through an OpenClaw gateway	A reachable gateway URL and any required token/session settings

Prefer a local CLI runtime when the agent needs a familiar coding-agent environment. Prefer Shell Process or HTTP Webhook when you want Rudder to call your own runtime contract.

Configure a local CLI runtime

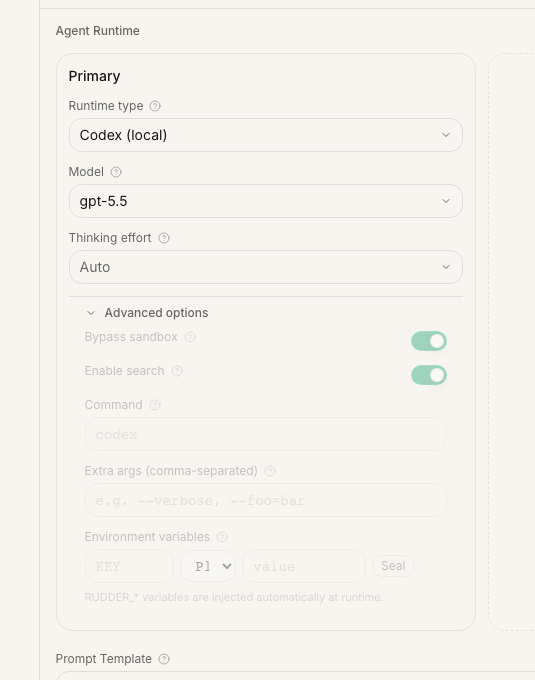

Use a local CLI runtime for Codex, Claude Code, Gemini CLI, OpenCode, Pi, or Cursor-backed agents. Codex local runtime configuration

Create or edit an agent.
Choose the runtime type.
Select a model when the runtime exposes model selection.
Add an agent instructions file if this agent needs a role-specific markdown file.
Configure runtime-specific options.
Run the environment test.
Assign the agent a low-risk issue and run one heartbeat.

The instructions file should be an absolute path, for example:

/Users/alice/work/rudder-agents/SOUL.md

Rudder injects its shared operating contract separately. For Codex, repository-scoped AGENTS.md files may still be applied by Codex itself when the agent works inside that repository. Codex-specific options include web search and sandbox bypass. Enable search only when the agent should use web results during runs. Enable sandbox bypass only for trusted local work that needs broader filesystem or network access. Claude Code options include Chrome access, permission behavior, and max turns per run. Keep these tight for routine work; loosen them only when the agent needs that capability.

Configure a shell process runtime

Use Shell Process when you already have a script or wrapper that can run one agent work cycle. In the agent form, set:

Setting	Meaning
`command`	Executable to launch, such as `node`, `python`, or an absolute binary path
`args`	Arguments passed to the command
`cwd`	Working directory for the process
`timeoutSec`	Optional run timeout in seconds
`graceSec`	Optional shutdown grace period
`env`	Optional string environment variables passed to the process

Example configuration:

{
  "command": "node",
  "args": ["scripts/my-agent-runtime.js"],
  "cwd": "/Users/alice/work/my-runtime",
  "timeoutSec": 900,
  "graceSec": 15,
  "env": {
    "MY_RUNTIME_MODE": "rudder"
  }
}

When Rudder invokes the process, it also provides Rudder runtime environment values for the agent. Keep secrets out of committed config files; store credentials in the host environment or your deployment secret manager. The environment test checks that:

command is present
cwd is an absolute directory
the command is resolvable from the configured working directory and PATH

Configure an HTTP webhook runtime

Use HTTP Webhook when your agent runs outside the Rudder process, such as a hosted service, queue worker, or internal orchestration layer. Minimum configuration:

{
  "url": "https://agent-runtime.example.com/rudder/heartbeat",
  "method": "POST",
  "timeoutMs": 15000
}

Optional fields include headers and payloadTemplate. At invocation time, Rudder sends a JSON body that combines your payloadTemplate with the agent id, run id, and Rudder run context:

{
  "agentId": "agent_...",
  "runId": "run_...",
  "context": {
    "reason": "..."
  }
}

The environment test validates the URL, records the configured method, and sends a HEAD probe. A failed probe may be a warning instead of a hard failure if the endpoint blocks HEAD, but the first real heartbeat should still be verified from the run transcript and your service logs.

Configure an OpenClaw Gateway runtime

Use OpenClaw Gateway when Rudder should hand execution to an OpenClaw-compatible gateway. Important settings include:

Setting	Meaning
Gateway URL	WebSocket endpoint, for example `ws://127.0.0.1:18789`
Payload template	JSON merged into the gateway payload
Runtime services	Optional service wiring for the gateway
Rudder API URL override	Public Rudder API URL if the gateway cannot reach the default
Session strategy	Fixed session, per issue, or per run
Gateway auth token	Stored as `x-openclaw-token` header
Role and scopes	Gateway-side authorization context
Wait timeout	How long Rudder waits for gateway completion

Use a fixed session for a long-lived operator identity. Use per-issue or per-run sessions when isolation matters more than continuity.

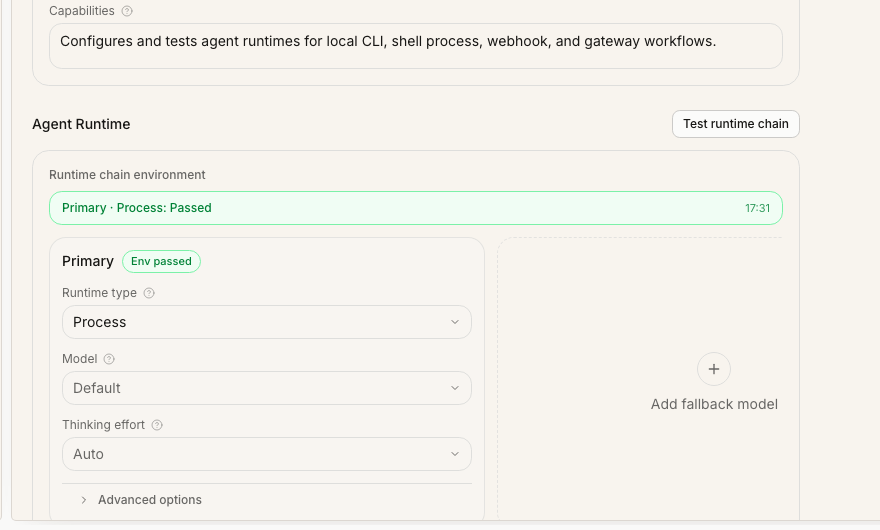

Test and iterate

Use the built-in environment test before assigning real work. It catches missing commands, invalid working directories, malformed URLs, and basic connectivity problems. A passing environment test is not the final proof. It only means Rudder can plausibly launch or contact the runtime. The real proof is one heartbeat that leaves inspectable evidence:

the run starts under the expected runtime
transcript entries or raw output appear on the run
the issue receives a progress, blocked, review, or done signal
the agent does not need credentials or permissions that only exist in your interactive shell

Operational checklist

Before you rely on the runtime for recurring work, confirm:

the agent role and capabilities are clear
the runtime is installed on the same host that runs Rudder
the runtime is authenticated outside the docs repository
model and instruction settings match the work
broad permissions are enabled only for trusted agents
the environment test passes, or each warning is understood
the first real heartbeat leaves transcript or issue evidence

Next steps

Agents

Review the agent model and heartbeat loop.

First organization

Hire your first agent in a new Rudder organization.

Issue lifecycle

Learn how runtime work should close out on issues.

Skills

Package reusable instructions for agents.
